1. Assemble in the order indicated in the table.
|
1
|
Valve seal
(See Valve Seal Assembly Note)
|
|
2
|
Valve
|
|
3
|
Valve spring
|
|
4
|
Upper valve spring seat
|
|
5
|
Valve keeper
|

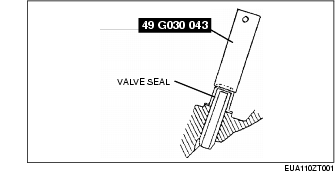

1. Press the valve seal onto the valve guide by hand.
2. Lightly tap the SST using a plastic hammer.
1. Install the valve keeper using the SSTs.

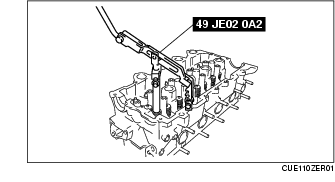

When using the SST (49 JE02 0A2) (Europe only)
When using the SSTs (49 0636 100B, 49 B012 0A2)
