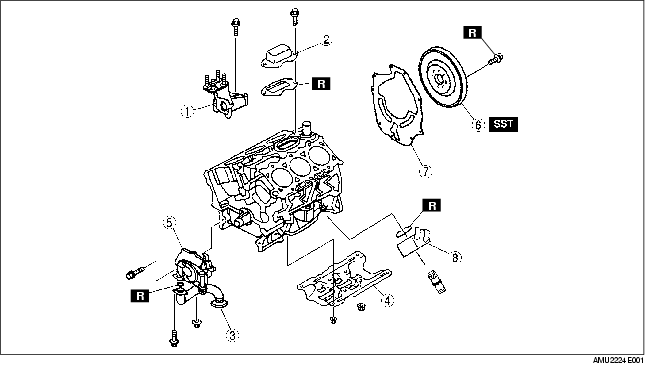

1. Disassemble in the order indicated in the table.
|
1
|
Engine mount bracket
|
|
2
|
Oil separator
|
|
3
|
Oil strainer
|
|
4
|
Oil baffle
|
|
5
|
Oil pump
|
|
6
|
Drive plate
|
|
7
|
End plate
|
|
8
|
Oil cooler
|

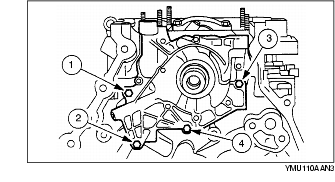

1. Remove the bolts in the order indicated in the figure.

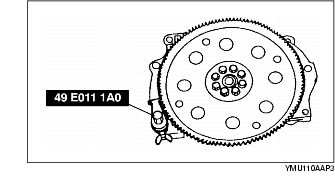

1. Hold the crankshaft using the SST.
2. Remove the bolts in several passes.
