CYLINDER BLOCK ASSEMBLY(II)

BME011010300505

1. Assemble in the order indicated in the table.


1	Oil cooler
2	End plate
3	Drive plate (See Drive Plate Assembly Note)
4	Oil pump (See Oil Pump Assembly Note)
5	Oil baffle (See Oil Baffle Assembly Note)
6	Oil strainer (See Oil Strainer Assembly Note)
7	Oil separator
8	Engine mount bracket

Drive Plate Assembly Note

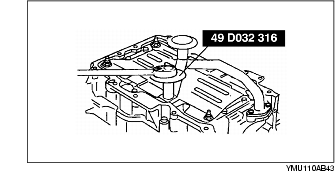

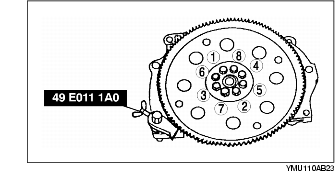

1. Hold the crankshaft using the SST.

2. Tighten the bolts in the order indicated in the figure in several passes.

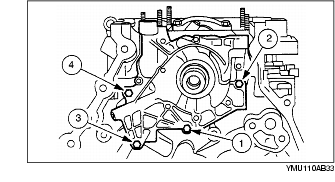

1. Tighten the bolts in the order indicated in the figure.

Tightening torque

8.0-12.0 N·m {82-122 kgf·cm, 71-106 in·lbf}

1. Tighten the nuts in two steps.

(1) Tighten nuts A to 5.0 N·m {51.0 kgf·cm, 44.3 in·lbf}, then nuts B to 15.0 N·m {153 kgf·cm, 133 in·lbf}.

(2) Tighten 45 ° using the SST.

1. Tighten the bolts.

2. Tighten the nut in two steps.

(1) Tighten to 15.0 N·m {153 kgf·cm, 133 in·lbf}.

(2) Tighten 45 ° using the SST.
