IDLER GEAR DISASSEMBLY

BUE051719203A01

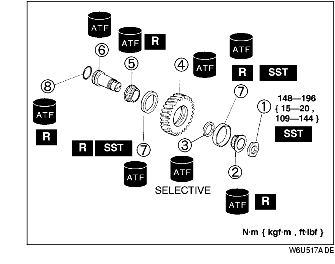

1. Disassemble in the order indicated in the table.


1	Locknut (See Locknut Disassembly Note.)
2	Bearing
3	Spacer
4	Idler gear
5	Bearing
6	Idler gear shaft
7	Bearing race (See Bearing Race Disassembly Note.)
8	O-ring

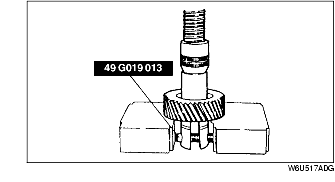

Locknut Disassembly Note

Caution

• Use protective plates in the vise to prevent damage to the SST.

1. Secure the SST and the idler gear component in a vise.

2. Remove the locknut.

1. Remove the bearing race from the idle gear using the SST.
