BEARING COVER COMPONENT DISASSEMBLY

BUE051719205A01

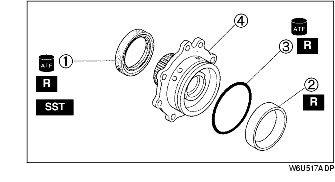

1. Disassemble in the order indicated in the table.

1
Oil seal
2
Bearing race
3
O-ring
4
Bearing cover

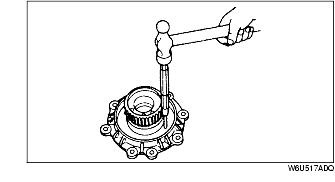

Bearing Race Disassembly Note

1. Remove the bearing race using a pin punch and a hammer.
