3-4 CLUTCH DISASSEMBLY


BUE051719500A06

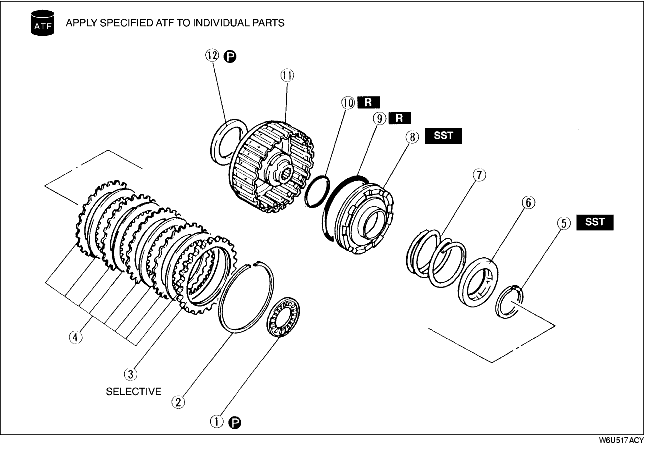

1. Disassemble in the order indicated in the table.

1
Thrust bearing
2
Snap ring
3
Retaining plate
4
Drive and driven plates
5
Snap ring
6
Spring retainer
7
Return spring
8
3-4 clutch piston
9
Outer seal
10
Inner seal
11
3-4 clutch drum
12
Bearing race

Snap Ring Disassembly Note

1. Install the SSTs to the 3-4 clutch as shown.

Caution
• Depress the spring retainer only enough to remove the snap ring. Overpressing will damage the retainer assembly edges.

2. Compress the spring retainer and the return spring.

3. Remove the snap ring.

4. Remove the SSTs, then remove the spring retainer and the return spring.

3-4 Clutch Piston Disassembly Note

Warning
• Using compressed air can cause dirt and other particle to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.

1. Remove the 3-4 clutch piston using the SST and compressed air.

Air pressure
390 kPa {4.0 kgf/cm2, 57 psi} max.
