ENGINE INSTALLATION[AJ (3.0L Duratec)]

id0110a3802000

1.  Assemble two SSTs using the bolt (M6) and nut, then install them in the position shown in the figure for the cylinder head (RH).

atraaw00003133

2.  Install with the transaxle on the crossmember.

3.  Install the five bolts to the transaxle.

atraaw00000297

4.  Position the joints haft bracket and install the bolts.

atraaw00000298

5.  Install a new gasket and the RH exhaust manifold.

atraaw00000299

6.  Install the generator.

atraaw00000300

7.  Connect the EGR pipe and the HO2S connector.

atraaw00000301

8.  Connect the OSS sensor connector.

atraaw00000302

9.  Connect the KS connector.

atraaw00000303

10.  Install the starter.

atraaw00000304

11.  Install the bolt and connect the transaxle harness to the bracket.

atraaw00000305

12.  Connect the transaxle harness.

atraaw00000306

13.  Connect the TR switch.

atraaw00000307

14.  Connect the HO2S sensors.

atraaw00000308

Caution

•  If the SSTs installed to the cylinder head (RH) interfere with the brake pipe, the brake pipe could be damaged. Do not allow the SSTs to interfere with the brake pipe.

atraaw00000062

15.  Using the SST, position the engine and transaxle on a suitable lift.

atraaw00000309

16.  Install the engine and transaxle in the vehicle.

17.  Install the four bolts to the engine mount member.

atraaw00000310

18.  Install the two front crossmember nuts.

atraaw00000311

19.  Install the two front crossmember bolts.

atraaw00000312

20.  Position the No.4 engine mount rubber and install the bolts.

atraaw00000313

Note

•  The next two steps must be carried out with the vehicle raised and the engine and transaxle supported by the lift.

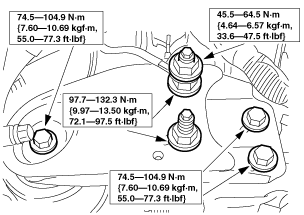

21.  Install No.3 engine mount bracket, bolts and nuts.

atraaw00001179

22.  Remove the lift.

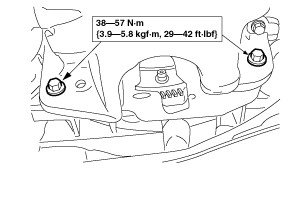

23.  Install the four bolts.

atraaw00000315

24.  Install the four torque converter mounting nuts.

atraaw00000316

25.  Install the access cover.

atraaw00000317

26.  Connect the two transaxle cooler lines.

atraaw00000318

27.  Install the cooler line bracket bolt.

atraaw00000319

28.  Install the bolt between the steering shaft and steering gear.

atraaw00000320

29.  Connect the LH and RH struts to the steering knuckles and install the bolts.

atraaw00000321

30.  Install the brake calipers to the steering knuckle.

atraaw00000322

31.  Position the LH and RH ABS sensors and install the bolts.

atraaw00000323

32.  Connect the LH and RH stabilizer control link to the shock absorber.

atraaw00000324

33.  Connect the LH and RH tie-rod ends to the steering knuckle.

atraaw00000325

34.  Connect the LH and RH ball joints.

atraaw00000326

35.  Install the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

36.  Install both front wheel and tire assemblies. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

37.  Install the A/C compressor.

38.  Install the catalytic converter. (See CATALYTIC CONVERTER REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

39.  Install the front tube. (See FRONT PIPE REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

40.  Install the lower splash shield.

41.  Install the power steering pressure hose bracket.

atraaw00000058

42.  Lower the vehicle.

43.  Install the dipstick.

atraaw00000327

44.  Connect the power steering pressure line.

•  Install the bracket bolt.

•  Connect the PSP switch connector.

•  Connect the power steering pressure line.

atraaw00000328

45.  Connect the power steering return line.

atraaw00000329

46.  Connect the heater hoses.

atraaw00000330

47.  Connect the vacuum line.

atraaw00000331

48.  Connect the brake vacuum hose.

atraaw00000332

49.  Connect the selector cable.

atraaw00000333

50.  Install the cables and the nuts.

atraaw00000334

51.  Install the BJB cover.

atraaw00000335

52.  Connect the connector to the BJB.

atraaw00000336

53.  Position the thermostat housing and connect the five hoses.

atraaw00000913

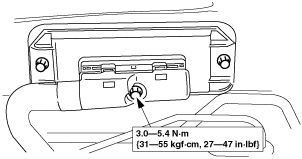

54.  Connect the PCM connector.

atraaw00000382

55.  Connect the purge solenoid valve outlet tube.

atraaw00000340

56.  Connect the accelerator cable.

57.  Connect the fuel line. (See BEFORE SERVICE PRECAUTION[AJ (3.0L Duratec)].)

58.  Install the air cleaner outlet tube and air cleaner. (See AIR CLEANER REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

59.  Install the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

60.  Install the water pump drive belt. (See DRIVE BELT REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

61.  Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT[AJ (3.0L Duratec)].)

62.  Refill the crankcase with oil. (See ENGINE OIL REPLACEMENT[AJ (3.0L Duratec)].)

63.  Start the engine, and inspect and adjust the following:

•  Runout and contact of the pulley and belt

•  Leakage of engine oil, engine coolant, ATF and fuel

•  Ignition timing, idle speed, and idle mixture (CO and HC concentration) (See ENGINE TUNE-UP[AJ (3.0L Duratec)].)

•  Engine-driven accessories operation

Note

•  If there is any malfunction, loosen the engine mount installation bolts and nuts, and adjust the engine installation position.

•  If installing an overhauled engine, perform a road test and verify that there is no abnormal vibration or noise.
