FRONT OIL SEAL REMOVAL/INSTALLATION[AJ (3.0L Duratec)]

id0110a3802900

Removal

1.  Remove the crankshaft pulley. (See CRANKSHAFT PULLEY REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)

2.  Using a flathead screwdriver, remove the front oil seal.

atraaw00003347

Installation

1.  Combine SST[303-335 (49 UN30 3335)] component A with SST[303-102 (49 UN01 002)].

atraaw00003348

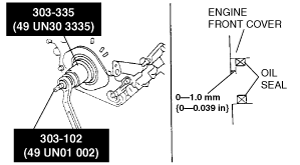

2.  Using the SST, install the front oil seal.

atraaw00003349

3.  Install the crankshaft pulley. (See CRANKSHAFT PULLEY REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
