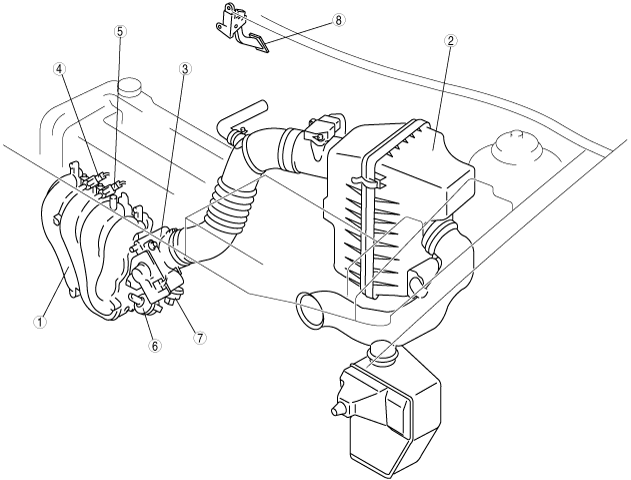

INTAKE-AIR SYSTEM LOCATION INDEX[L3]

id0113a2801700

atraaw00001126

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION[L3].) (See INTAKE MANIFOLD VACUUM INSPECTION[L3].)
2	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION[L3].) (See AIR CLEANER ELEMENT INSPECTION[L3].)
3	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION[L3].) (See THROTTLE BODY INSPECTION[L3].)
4	Variable intake air solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION[L3].) (See VARIABLE INTAKE AIR SOLENOID VALVE INSPECTION[L3].)
5	Variable tumble solenoid valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION[L3].) (See VARIABLE TUMBLE SOLENOID VALVE INSPECTION[L3].)
6	Variable intake air shutter valve actuator (See VARIABLE INTAKE AIR SHUTTER VALVE ACTUATOR INSPECTION[L3].)
7	Variable tumble shutter valve actuator (See VARIABLE TUMBLE SHUTTER VALVE ACTUATOR INSPECTION[L3].)
8	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION[L3].)
