TRANSFER OIL REPLACEMENT[GF4AX-EL]

id0316a1800300

1. Remove the transfer component. (See TRANSFER REMOVAL/INSTALLATION[GF4AX-EL].)

2. Remove the oil level plug and washer.

3. Drain the transfer oil from the oil level plug hole.

4. Install the transfer component. (See TRANSFER REMOVAL/INSTALLATION[GF4AX-EL].)

5. Fill the transfer oil.

Specified oil grade

API Service GL-5

Specified oil viscosity

SAE 80W-90

Capacity (approx. quantity)

0.35 L {0.37 US qt, 0.31 Imp qt}

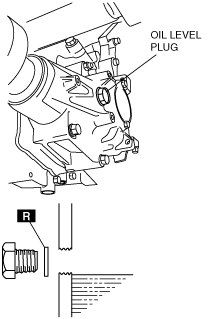

6. Verify that the oil is near the brim of the oil level plug hole.

atraaw00003373

7. Install the oil level plug with a new washer.

Tightening torque

39.2—58.8 N·m {4.0—5.9 kgf·m, 28.9—43.3 ft·lbf}
