DTC P0707, P0708, P1702[LA4AX-EL (CD4E)]
id050207805800
DTC P0707 |
Transaxle range (TR) switch circuit malfunction (short to ground) |
---|---|
DTC P0708 |
Transaxle range (TR) switch circuit malfunction (open circuit/short to power supply) |
DTC P1702 |
Transaxle range (TR) switch signal malfunction |
DETECTION CONDITION
|
• P0707: Short to ground in wiring harness between TR switch terminal and PCM terminal or short to ground in TR switch internal circuit
• P0708: Open circuit in wiring harness between TR switch and PCM terminal or in TR switch internal circuit
• P1702: PCM cannot detect a signal from TR switch
|
POSSIBLE CAUSE
|
• TR switch malfunction

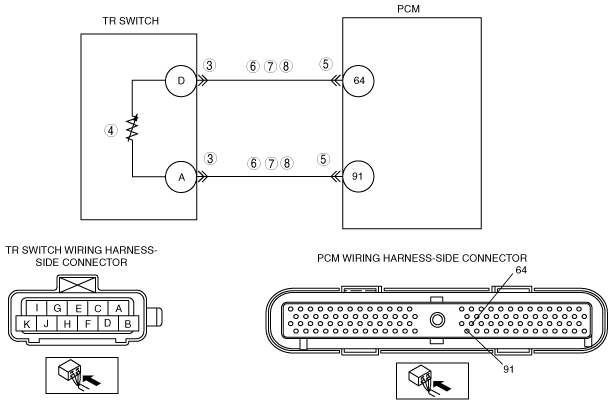

• Short to ground in wiring harness between TR switch terminal D and PCM terminal 64
• Short to ground in wiring harness between TR switch terminal A and PCM terminal 91
• Open circuit in wiring harness between TR switch terminal D and PCM terminal 64
• Open circuit in wiring harness between TR switch terminal A and PCM terminal 91
• Short to power supply in wiring harness between TR switch terminal D and PCM terminal 64
• Short to power supply in wiring harness between TR switch terminal A and PCM terminal 91
• Damaged connectors between TR switch and PCM
• PCM malfunction
|
![]() |
Diagnostic procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|
INSPECT TR SWITCH CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch to the LOCK position.
• Disconnect the TR switch connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion)
• Is the connection normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace connector and/or terminal, then go to Step 9.
|
||
4
|
INSPECT TR SWITCH
• Inspect the TR switch.
• Is TR switch normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the TR switch, then go to Step 9.
|
||
5
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is the connection normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the connector and/or terminals, then go to Step 9.
|
||
6
|
INSPECT TR SWITCH CIRCUIT FOR SHORT TO GROUND
• Inspect continuity between TR sensor terminals (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness, then go to Step 9.
|
No
|
Go to the next step.
|
||
7
|
INSPECT TR SWITCH CIRCUIT FOR OPEN CIRCUIT
• Inspect the following TR switch terminals (wiring harness-side) and PCM terminals (wiring harness-side):
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness, then go to Step 9.
|
||
8
|
INSPECT TR SWITCH CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (engine off).
• Inspect the voltage at TR switch terminals A and D (wiring harness-side).
• Is the voltage 0 V?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness, then go to the next step.
|
||
9
|
VERIFY TROUBLESHOOTING OF DTC P0707 P0708 OR P1702 COMPLETED
• Make sure to reconnect all the disconnected connectors.
• Clear the DTC from the memory using the M-MDS.
• Perform the “After Repair Procedure”.
• Is the same DTC present?
|
Yes
|
Replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
10
|
VERIFY DTCS
• Are except DTC P0707, P0708 and P1702 output?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE[LA4AX-EL (CD4E)].)
|
No
|
DTC troubleshooting completed.
|
