OIL COOLER REMOVAL/INSTALLATION[LA4AX-EL (CD4E)]

id051708801600

1.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

2.  Disconnect the oil hoses.

atraaw00002714

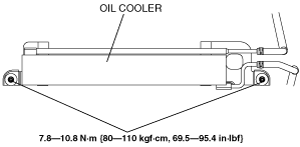

3.  Remove the bolts and auxiliary oil cooler.

atraaw00003449

4.  Install in the reverse order of removal.

5.  Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT[LA4AX-EL (CD4E)].)
