SELECTOR CABLE REMOVAL/INSTALLATION[LA4AX-EL (CD4E)]

id0518008102a1

1.  Disconnect the negative battery cable.

2.  Remove the following parts.

(1)  Floor console. (See FLOOR CONSOLE REMOVAL/INSTALLATION.)
(2)  GEM (See GENERIC ELECTRONIC MODULE (GEM) REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  Adjust the selector cable. (See SELECTOR CABLE ADJUSTMENT.)

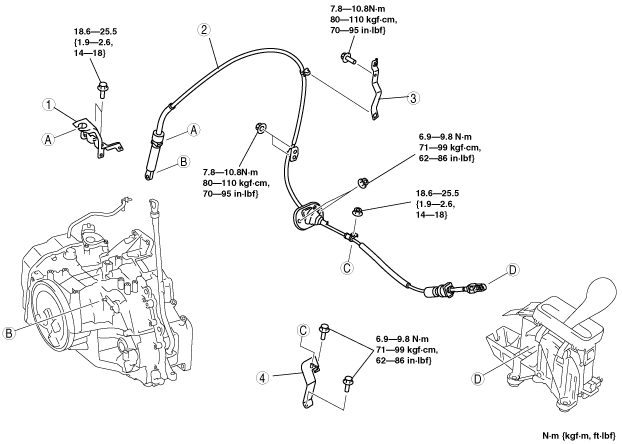

atraaw00001839

1
Cable bracket
2
Selector cable
(See Selector Cable Installation Note.)
3
Cable bracket
4
Cable bracket


Selector Cable Installation Note

1.  Install the rubber with the arrow facing toward the center of the vehicle.

atraaw00001837

Tightening torque
6.9—9.8 N·m {70—100 kgf·cm, 61—86 in·lbf}
