MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [L3]

id074000809900

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

atraaw00003041

1	Bolt (See Bolt Removal/installation Note.)
2	Pressure plate
3	Shim
4	Snap ring
5	A/C compressor pulley (See A/C Compressor Pulley Removal Note.) (See A/C Compressor Pulley Installation Note.)
6	Stator (See Stator Removal Note.) (See Stator Installation Note.)

3.  Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT.)

Bolt Removal/installation Note

1.  Remove/install the bolt using the SST.

aesffw00000215

2.  When installing a new A/C compressor body, replace the bolt.

A/C Compressor Pulley Removal Note

1.  Remove the A/C compressor pulley using the SST.

aesffw00000216

Stator Removal Note

1.  Remove the stator using the SST.

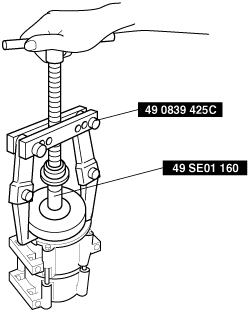

aesffw00000217

Stator Installation Note

1.  Install the stator using the SST.

aesffw00000218

Caution

•  Do not use air tools. The stator can be easily damaged.

A/C Compressor Pulley Installation Note

1.  Install the A/C compressor pulley using the SST.

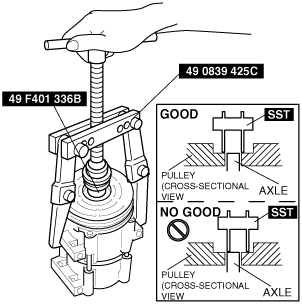

aesffw00000219

Caution

•  If the SSTs are not properly positioned when the A/C compressor pulley is press-fit, the A/C compressor axle will interfere with the SSTs, possibly damaging component parts. Verify that the SST and axle are properly positioned and perform the procedure very carefully.
