SET TEMPERATURE CORRECTION SETTING

id074000830000

1. Shine a 60 W incandescent light from a distance of approx. 100 mm vertically to the solar radiation sensor.

Note

• If incandescent light is not shone to the solar radiation sensor, the climate control unit determines that there is a malfunction.

2. Turn the ignition switch to the ON position, then press and hold the A/C switch and OFF switch for 5 s or more within 10 s.

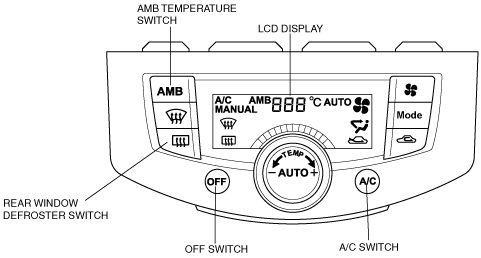

atraaw00003395

3. Verify that DTC “S1.0” is displayed.

Note

• If DTC “S1.0” flashes, the system may have a malfunction. Refer to DTC INSPECTION and inspect the system. (See DTC INSPECTION.)

4. Press the AMB temperature switch for 5 s or more.

5. Verify that “9.H” (initial set value) is displayed in the LCD.

Note

• The LCD displays the current set temperature correction value (0 to C).

6. Press the rear window defroster switch and select a set temperature correction value in the table.

LCD display

Set temperature correction value (°C {°F})

0.H

-3.0 {-5.4}

1.H

-2.5 {-4.5}

2.H

-2.0 {-3.6}

3.H

-1.5 {-2.7}

4.H

-1.0 {-1.8}

5.H

-0.5 {-0.9}

6.H

0 {0}

7.H

0.5 {0.9}

8.H

1.0 {1.8}

9.H

1.5 {2.7}

A.H

2.0 {3.6}

B.H

2.5 {4.5}

C.H

3.0 {5.4}

LCD display	Set temperature correction value (°C {°F})
0.H	-3.0 {-5.4}
1.H	-2.5 {-4.5}
2.H	-2.0 {-3.6}
3.H	-1.5 {-2.7}
4.H	-1.0 {-1.8}
5.H	-0.5 {-0.9}
6.H	0 {0}
7.H	0.5 {0.9}
8.H	1.0 {1.8}
9.H	1.5 {2.7}
A.H	2.0 {3.6}
B.H	2.5 {4.5}
C.H	3.0 {5.4}

7. Press the AMB temperature switch for 5 s or more.

8. Turn the ignition switch off to finish.
