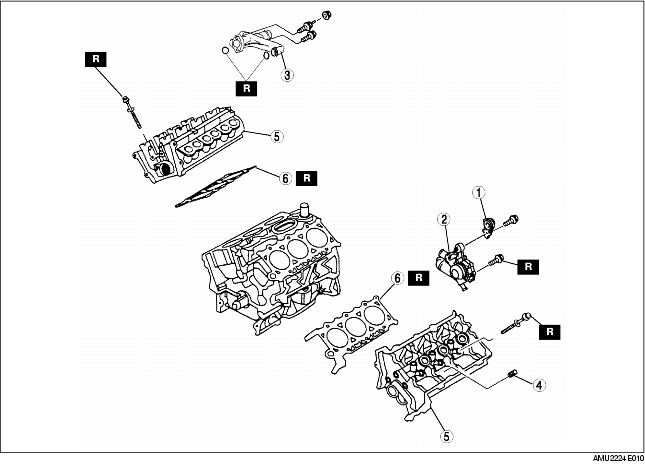

1. Disassemble in the order indicated in the table.
|
1
|
Water pump drive belt tensioner
|
|
2
|
Water pump
|
|
3
|
Water bypass tube
|
|
4
|
HLA
|
|
5
|
Cylinder head
|
|
6
|
Cylinder head gasket
|

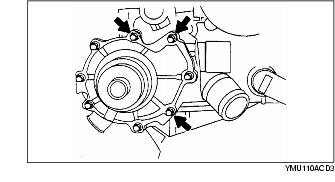

1. Remove the water pump mounting bolts as shown.

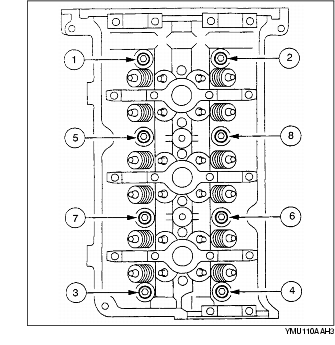

1. Remove the cylinder head bolts in the order indicated in the figure in several passes.
