CYLINDER HEAD DISASSEMBLY(II)

BME011010100506

1. Disassemble in the order indicated in the table.


1	Valve keeper (See Valve Keeper Disassembly Note)
2	Upper valve spring seat
3	Valve spring
4	Valve
5	Valve seal (See Valve Seal Disassembly Note)

Valve Keeper Disassembly Note

1. Remove the valve keeper using the SSTs.

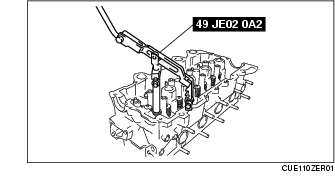

When using the SST (49 JE02 0A2) (Europe only)

When using the SSTs (49 0636 100B, 49 B012 0A2)

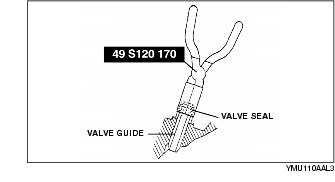

1. Remove the valve seal using the SST.
