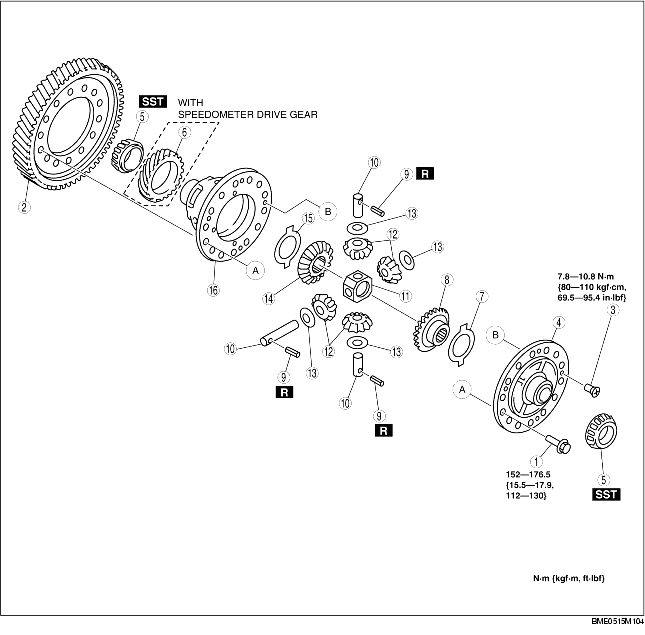

1. Disassemble in the order indicated in the table.
|
1
|
Bolts
|
|
2
|
Ring gear
|
|
3
|
Screw
|
|
4
|
Differential cover
|
|
5
|
Bearing
(See Bearing Disassembly Note.)
|
|
6
|
Speedomter driver gear
|
|
7
|
Thrust washer
|
|
8
|
Side gear
|
|
9
|
Roll pin
|
|
10
|
Pinion shaft
|
|
11
|
Pinion carrier
|
|
12
|
Pinion gear
|
|
13
|
Thrust washer
|
|
14
|
Side gear
|
|
15
|
Thrust washer
|
|
16
|
Gear case
|

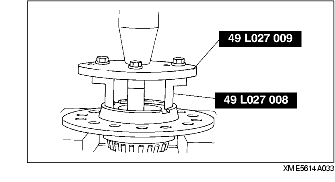

1. Remove the bearing (speedometer drive gear side) from the gear case using the SSTs.

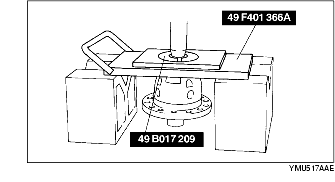

2. Remove the bearing (differential cover side) from the differential cover using the SSTs.
