1. Assemble in the order indicated in the table.
|
1
|
Oil passage
|
|
2
|
Oil seal (differential)
|
|
3
|
Adjustment shim(s)
|
|
4
|
Bearing race (differential)
|
|
5
|
Adjustment shim(s)
|
|
6
|
Bearing race (transaxle case)
|
|
7
|
Drain plug and washer
|
|
8
|
Reverse lever
|
|
9
|
Reverse lever shaft
|
|
10
|
Bearing race (differential)
|
|
11
|
Oil seal (differential)
|
|
12
|
Hole cover
|
|
13
|
Bleeder
|
|
14
|
Bleeder cover component
|
|
15
|
Oil seal (change rod component)
|
|
16
|
Selector
|
|
17
|
Boot
(See Boot Assembly Note.)
|
|
18
|
Change rod
|
|
19
|
Roll pin
|
|
20
|
Change arm
|
|
21
|
Guide plate component
|
|
22
|
Funnel
|
|
23
|
Bearing race (secondary shaft)
|
|
24
|
Oil seal (primary shaft)
|
|
25
|
Bearing race (primary shaft)
|
1. Apply transaxle oil to the new oil seal lip.

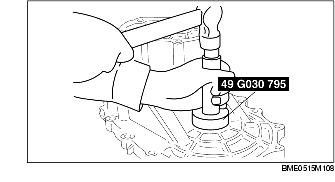

2. Install the oil seal using the SST.

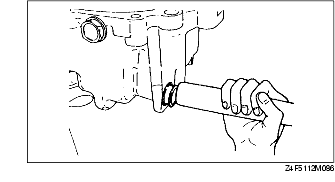

1. Install the adjustment shim(s) and install the bearing race using a suitable pipe.

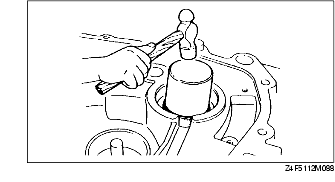

1. Install the adjustment shim(s) and install the bearing race using a suitable pipe.
1. Apply transaxle oil to the new oil seal lip.

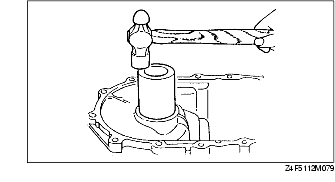

2. Install the oil seal using a suitable pipe.

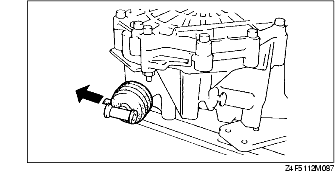

1. Install the boot with the drain hole facing downward when mounted on the vehicle.
1. Apply transaxle oil to outer circumference of the oil seal.

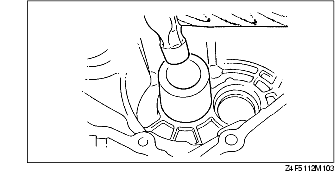

2. Install the new oil seal using a suitable pipe.
