1. Disassemble in the order indicated in the table.
.
|
1
|
Bearing race
|
|
2
|
Seal rings
|
|
3
|
Oil pump cover
|
|
4
|
Oil pump flange
|
|
5
|
Inner rotor
(See Inner Rotor Disassembly Note.)
|
|
6
|
Outer rotor
|
|
7
|
Plug
|
|
8
|
Packing
|
|
9
|
Spring
|
|
10
|
Spool
|
|
11
|
Oil pipe
|
|
12
|
Packing
|
|
13
|
Oil pump housing
|

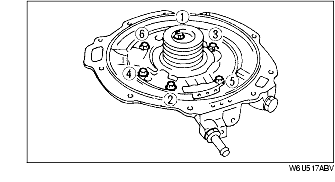

1. Loosen the mounting bolts evenly in the pattern shown and remove the oil pump cover from the oil pump housing.
1. Mark the outer and inner rotors without scratching or denting them, then remove them from the oil pump housing.
