1. Disassemble in the older indicated in the table.
.
|
1
|
Bolts
|
|
2
|
Ring gear
|
|
3
|
Sun gear
(See Sun Gear Disassembly Note.)
|
|
4
|
Screw
|
|
5
|
Differential cover
|
|
6
|
Bearing
(See Bearing Disassembly Note)
|
|
7
|
Thrust washer
|
|
8
|
Side gear
|
|
9
|
Roll pin
|
|
10
|
Pinion shaft
|
|
11
|
Pinion carrier
|
|
12
|
Pinion gear
|
|
13
|
Thrust washer
|
|
14
|
Side gear
|
|
15
|
Thrust washer
|
|
16
|
Gear case
|

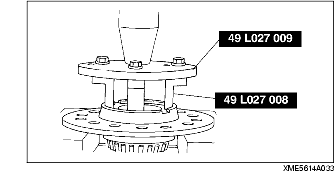

1. Install the SST to the front differential as shown.
2. Remove the sun gear using the press.

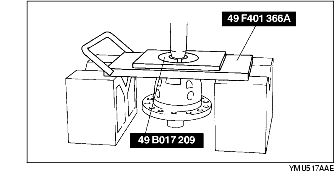

1. Remove the bearing (sun gear side) from the gear case using the SSTs.
2. Remove the bearing (ring gear side) from the gear case using the SST.
