CLUTCH HOUSING AND TRANSAXLE CASE COMPONENTS ASSEMBLY
BUE051500000M09

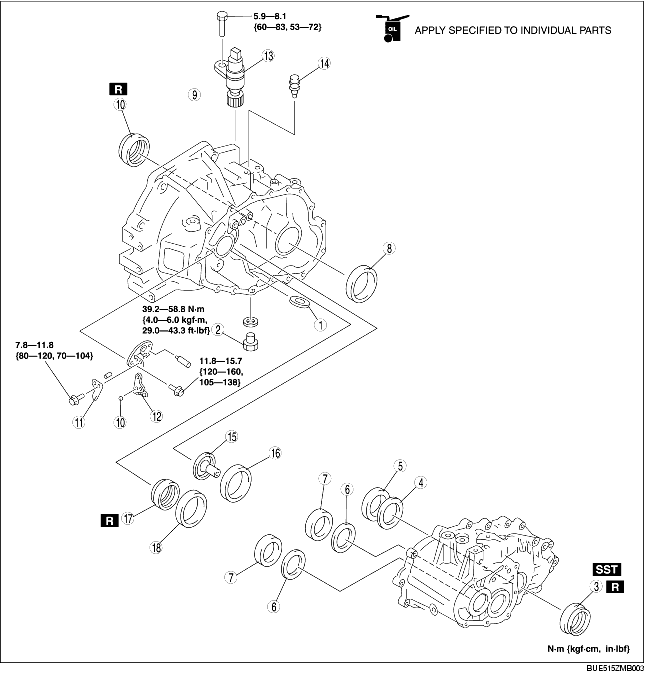

1. Assemble in the order indicated in the table.
|
1
|
Magnet
|
|
2
|
Drain plug
|
|
3
|
Oil seal (differential)
|
|
4
|
Adjustment shim (s)
|
|
5
|
Bearing race (differential)
|
|
6
|
Adjustment shim (s)
|
|
7
|
Bearing race (transaxle case)
|
|
8
|
Bearing race (differential)
|
|
9
|
Oil seal (differential)
|
|
10
|
Steel ball
|
|
11
|
Lever set spring
|
|
12
|
Reverse lever support
|
|
13
|
Speedometer driven gear
|
|
14
|
Air breather
|
|
15
|
Funnel
|
|
16
|
Bearing race (secondary shaft)
|
|
17
|
Oil seal (primary shaft)
|
|
18
|
Bearing race (primary shaft)
|
Oil Seal (Differential) Assembly Note
1. Apply transaxle oil to the new oil seal lip.

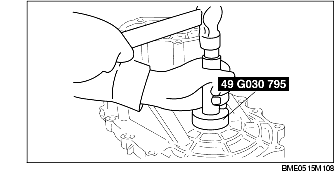

2. Install the oil seal using the SST.
Bearing Race (Differential) Assembly Note

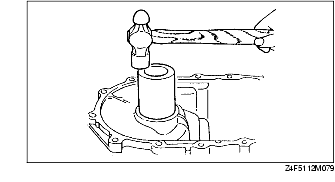

1. Install the adjustment shim (s) and install the bearing race using a suitable pipe.
Bearing Race (Transaxle Case) Assembly Note

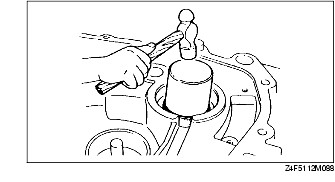

1. Install the adjustment shim (s) and install the bearing race using a suitable pipe.
Oil Seal (Primary Shaft) Assembly Note
1. Apply transaxle oil to outer circumference of the oil seal.

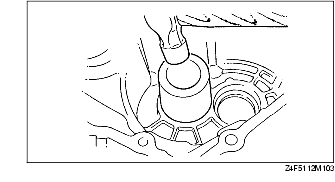

2. Install the new oil seal using a suitable pipe.
