CLUTCH HOUSING AND TRANSAXLE CASE COMPONENTS DISASSEMBLY
BUE051517011M01

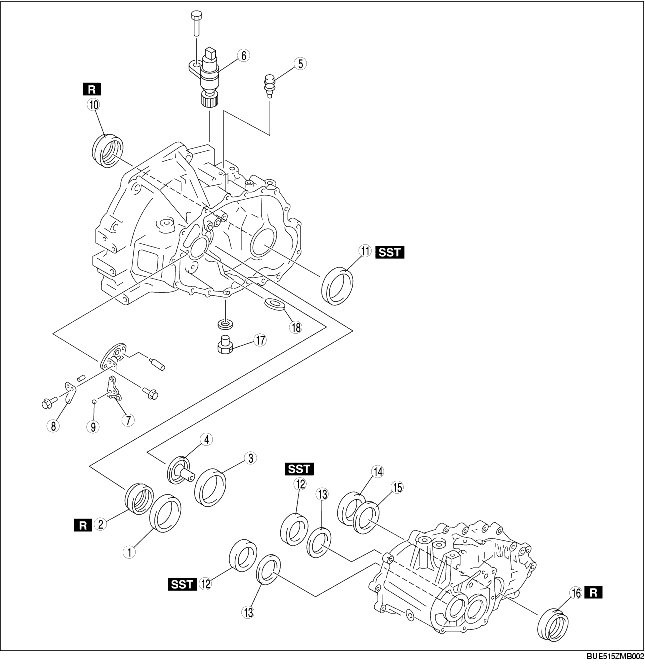

1. Disassemble in the order shown in the figure.
|
1
|
Bearing race (primary shaft)
|
|
2
|
Oil seal (primary shaft)
|
|
3
|
Bearing race (secondary shaft)
|
|
4
|
Funnel
|
|
5
|
Air breather
|
|
6
|
Speedometer driven gear
|
|
7
|
Reverse lever support
|
|
8
|
Lever set spring
|
|
9
|
Steel ball
|
|
10
|
Oil seal (differential)
|
|
11
|
Bearing race (differential)
|
|
12
|
Bearing race (transaxle case)
|
|
13
|
Adjustment shim (s)
|
|
14
|
Bearing race (differential)
|
|
15
|
Adjustment shim (s)
|
|
16
|
Oil seal (differential)
|
|
17
|
Drain plug
|
|
18
|
Magnet
|
Oil Seal (Primary Shaft) Disassembly Note
1. Remove the oil seal using screwdriver.
Bearing Race (Secondary Shaft) Disassembly Note
1. Remove the bearing race by lifting it and the funnel out together.

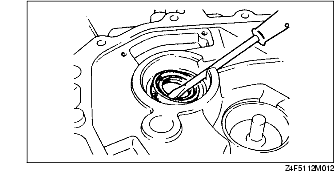

Oil Seal (Differential) Disassembly Note
1. Remove the oil seal using the screwdriver.

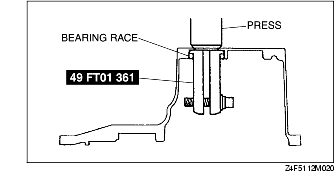

Bearing Race (Differential) Disassembly Note
1. Remove the bearing outer race using the SST.

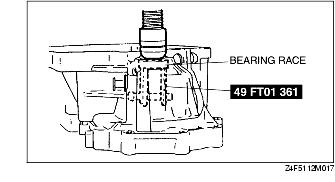

Bearing Race (Transaxle Case) Disassembly Note
1. Remove the bearing race using the SST.
