COOLING FAN CONTROL MODULE CONSTRUCTION/OPERATION [L3]
BUE011215025N01
Construction
• The cooling fan control module has been installed to the radiator cowling.
Operation
• The fan control module has a power supply function for driving each of the fan motors and the following protection functions:
1. Over-current protection
-
- If the current value to the fan motor is exceeded, the function sets the value to the set duty value.
-
- The fan motor is returned to normal control when the current value to the fan motor decreases to the certain value.
2. Over-heating protection
-
- When the internal temperature of the fan control module is too high, the function sets the value to the set output duty value.
3. Input signal open circuit protection
-
- If there is an open circuit in the wiring harness between the PCM and fan control module, the function sets the value to the set output duty value.
|

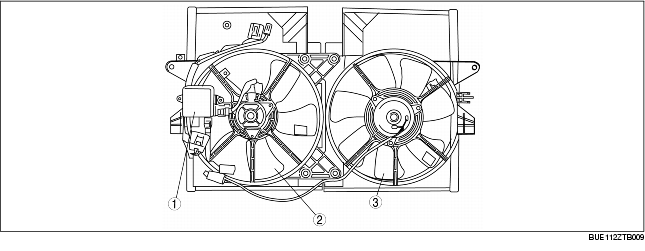

1
|
Fan control module
|
|
2
|
Cooling fan
|
|
3
|
Additional fan
|
|

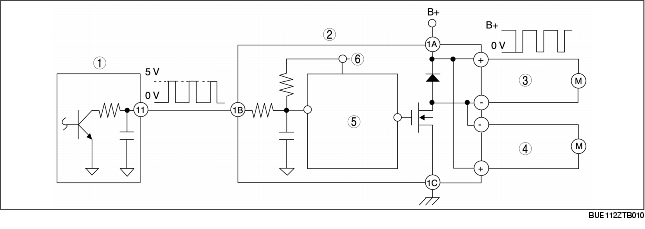

1
|
PCM
|
|
2
|
Fan control module
|
|
3
|
Cooling fan motor
|
|
4
|
Additional fan motor
|
|
5
|
IC
|
|
6
|
Power supply of constant voltage
|
