Diagnostic procedure
STEP
|
INSPECTION
|
ACTION
|
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related service repair information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|

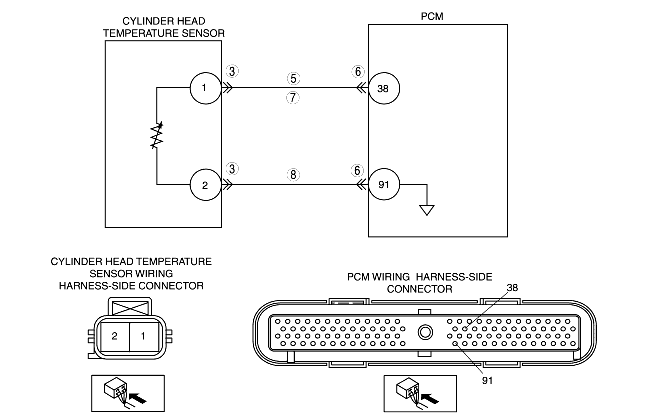

INSPECT CYLINDER HEAD TEMPERATURE SENSOR CONNECTOR
• Turn the ignition switch off.
• Verify that the cylinder head temperature sensor connector is connected securely.
• Is connector normal?
|
Yes
|
Go to the next step.
|
No
|
Connect the connector securely, then go to Step 8.
|
||
4
|
INSPECT POOR CONNECTION OF CYLINDER HEAD TEMPERATURE SENSOR CONNECTOR
• Disconnect the cylinder head temperature sensor connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 8.
|
No
|
Go to the next step.
|
||
5
|
INSPECT CYLINDER HEAD TEMPERATURE SENSOR
• Perform cylinder head temperature sensor inspection.
• Is cylinder head temperature sensor normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the TP sensor, then go to Step 8.
|
||
6
|
VERIFY CYLINDER HEAD TEMPERATURE SIGNAL CIRCUIT FOR SHORT TO GROUND
• Inspect for continuity between cylinder head temperature sensor terminal 1 (harness-side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness, then go to Step 8.
|
No
|
Go to the next step.
|
||
7
|
VERIFY CYLINDER HEAD TEMPERATURE SIGNAL CIRCUIT FOR SHORT CIRCUIT
• Inspect for continuity between cylinder head temperature sensor terminal 1 (harness-side) and cylinder head temperature sensor terminal 2 (harness-side).
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness, then go to the next step.
|
No
|
Go to the next step.
|
||
8
|
VERIFY TROUBLESHOOTING OF DTC P0122 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Start the engine.
• Is the same DTC present?
|
Yes
|
Replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
9
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the "After Repair Procedure".
• Are any DTC present?
|
Yes
|
Go to the applicable DTC troubleshooting.
(See DTC TABLE [YF (2.0L Zetec)].)
|
No
|
Troubleshooting completed.
|
