FRONT OIL SEAL REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

id0110a3800800

Removal

1. Remove the crankshaft pulley. (See CRANKSHAFT PULLEY REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)

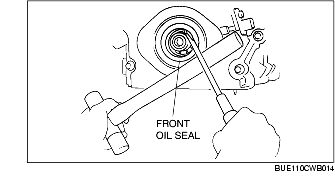

2. Using a flathead screwdriver, remove the front oil seal.

Installation

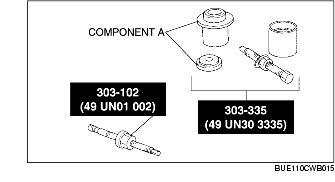

1. Combine SST [303-335 (49 UN30 3335)] component A with SST [303-102 (49 UN01 002)].

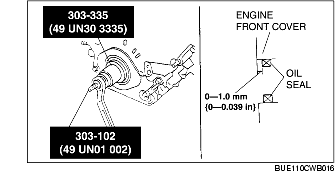

2. Using the SST, install the front oil seal.

3. Install the crankshaft pulley. (See CRANKSHAFT PULLEY REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)
