DRIVE BELT TENSIONER INSPECTION [YF (2.0L Zetec)]

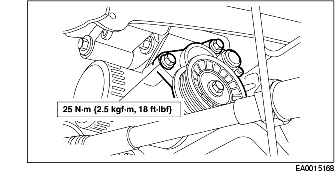

Drive Belt Tensioner

Removal and Installation

1. Remove the drive belt. (See DRIVE BELT REPLACEMENT [YF (2.0L Zetec)].)

2. Remove the bolts and the drive belt tensioner.

3. To install, reverse the removal procedure.

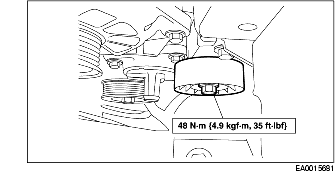

Drive Belt Idler Pulley

Removal and Installation

1. Remove the drive belt. (See DRIVE BELT REPLACEMENT [YF (2.0L Zetec)].)

2. Remove the bolt and the drive belt idler pulley.

3. To install, reverse the removal procedure.
