1. Disconnect the negative battery cable.
2. Drain the engine oil. (See ENGINE OIL REPLACEMENT [L3].)
3. Remove the oil pan. (See OIL PAN REMOVAL/INSTALLATION [L3].)

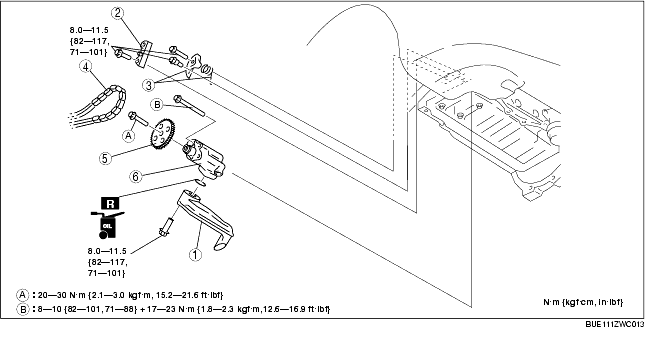

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Add engine oil. (See ENGINE OIL REPLACEMENT [L3].)
7. Start the engine and confirm that there is no oil leakage.
8. Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION.)
9. Inspect the oil pressure. (See OIL PRESSURE INSPECTION [L3].)
|
1
|
Oil strainer
|
|
2
|
Oil pump chain guide
|
|
3
|
Oil pump chain tensioner, spring component
|
|
4
|
Oil pump chain
|
|
5
|
Oil pump sprocket
|
|
6
|
Oil pump
(See Oil Pump Installation Note.)
|

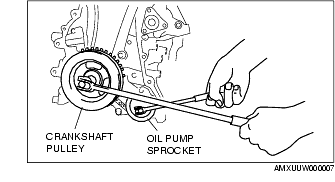

1. Temporarily install the crankshaft pulley and crankshaft pulley lock bolt to the crankshaft, and lock the oil pump against rotation as shown in figure.
2. Remove/install the oil pump sprocket, and then remove the crankshaft pulley and crankshaft pulley lock bolt.

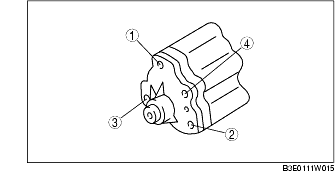

1. Tighten the oil pump installation bolts in two passes, in the order shown in the figure.
