1. Disconnect the negative battery cable.
2. Remove the splash shield (LH).
3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [L3].)
4. Remove the splash shield (RH).
5. Remove the drive belt. (See DRIVE BELT REPLACEMENT [L3].)
6. Position the power steering oil pump out of the way with the hose and pipe still connected. (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION [L3].)

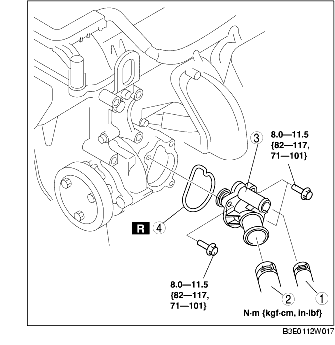

7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.
9. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [L3].)
10. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION.)
