1. Disconnect the negative battery cable.
2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [AJ (3.0L Duratec)].)
3. Remove the plug hole plate.

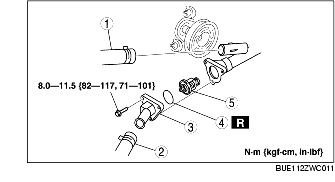

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
|
1
|
Lower radiator hose
|
|
2
|
Upper radiator hose
|
|
3
|
Thermostat cover
|
|
4
|
O-ring
|
|
5
|
Thermostat
(See Thermostat Installation Note.)
|

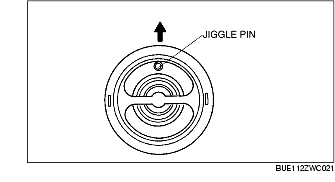

1. Install the thermostat into the thermostat case with the jiggle pin at the top.
