FRESH AIR DUCT REMOVAL/INSTALLATION [YF (2.0L Zetec)]

1. Remove the air cleaner. (See AIR CLEANER REMOVAL/INSTALLATION [YF (2.0L Zetec)].)

2. Remove the battery.

3. Remove the battery tray.

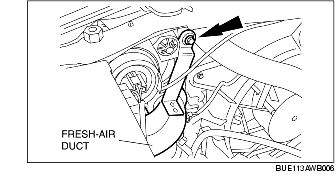

4. Remove the fresh air duct installation bolt and fresh air duct.

Note

• Verify that the front sponge seal for the fresh air duct is installed correctly to the shroud panel.

5. Install in the reverse order of removal.

Fresh air duct installation bolt tightening torque

8 N·m {82 kgf·cm, 71 in·lbf}
