AIR CLEANER REMOVAL/INSTALLATION [YF (2.0L Zetec)]


id0113b9802500

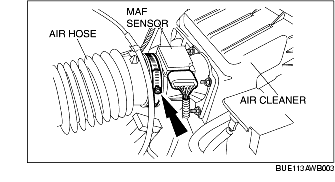

1. Disconnect the air hose. (See AIR HOSE REMOVAL/INSTALLATION [YF (2.0L Zetec)].)

2. Disconnect the MAF sensor connector.

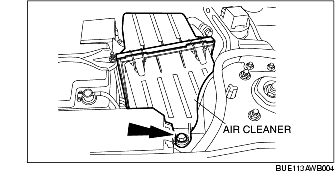

3. Remove the air cleaner.

4. Install in the reverse order of removal.

Air cleaner installation bolt tightening torque
8 N·m {82 kgf·cm, 71 in·lbf}
Air hose clamp tightening torque
3 N·m {31 kgf·cm, 27 in·lbf}
