FUEL INJECTOR REMOVAL/INSTALLATION [AJ (3.0L Duratec)]


id0114a1800600

1. Remove the fuel distributor. (See FUEL DISTRIBUTOR REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)

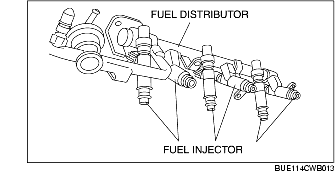

2. Remove the fuel injector from the fuel distributor.

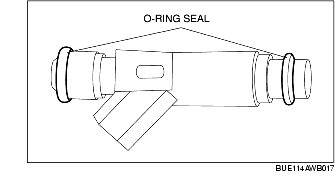

3. Inspect the O-ring sealing and replace it if necessary.

4.• Apply clean engine oil to a new O-ring sealing.

5. Install in the reverse order of removal.
