NONRETURN VALVE INSPECTION [L3]


id0114a2803600

1. Remove the nonreturn valve. (See FUEL TANK REMOVAL/INSTALLATION [L3].)

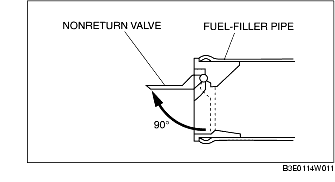

2. Verify that the nonreturn valve opens up to 90× when it is pushed from the fuel-filler pipe side, and it returns to the normal position by spring force.

• If the nonreturn valve does not open up to 90× or does not return to the normal position, replace the nonreturn valve.
