GENERATOR REMOVAL/INSTALLATION [L3 R.H.D.]

Warning

• When the battery cables are connected, touching the vehicle body with generator terminal B generates sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery negative cable before removing the generator.

Caution

• The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct and the generator heat insulator are installed securely.

1.• Disconnect the negative battery cable.

2. Remove the splash shield (RH).

3. Remove the drive belt. (See DRIVE BELT REPLACEMENT [L3].)

4. Position the power steering hose stay out of the way.

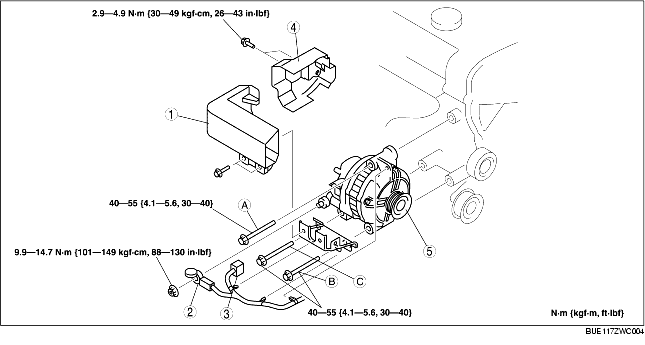

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

Generator Removal Note

1. Remove the exhaust manifold insulator installation bolt and slide the insulator backwards.

2. Remove the generator and generator duct together from the engine, and position them in the engine compartment in a location where no part can be damaged.

3. Remove the generator from above the engine compartment.

4. Remove the generator from above the engine compartment.

Generator Installation Note

1. Temporarily tighten bolt A.

2. Tighten the bolts in the order of B, A, and C
