IGNITION COIL REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

1.• Disconnect the negative battery cable.

2. Remove the plug hole plate.

3. Remove the dynamic chamber. (See DYNAMIC CHAMBER REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)

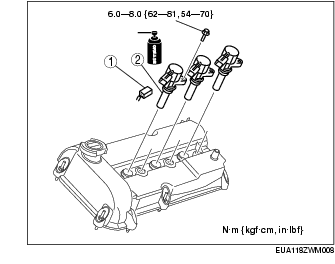

4. Remove in the order indicated in the table.

Caution

• Apply small amount of the specified dielectric grease to the inside of the ignition coils, then install the ignition coils to the spark plugs.

- Specified grease: Motorcraft XG-3A

5. Install in the reverse order of removal.
