IGNITION COIL INSPECTION [L3 L.H.D.]

Primary Coil Winding

1. Disconnect the ignition coil connector.

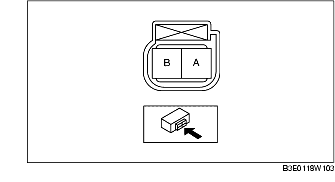

2. Measure the resistance between the following terminals using an ohmmeter:

• A and B

- If not within the specification, replace the ignition coil.

Resistance (Reference)

0.45-1.15 ohms [25 °C {77 °F}]

Secondary Coil Winding

1. Disconnect the ignition coil connector.

2. Remove the ignition coil. (See IGNITION COIL REMOVAL/INSTALLATION [L3 L.H.D.].)

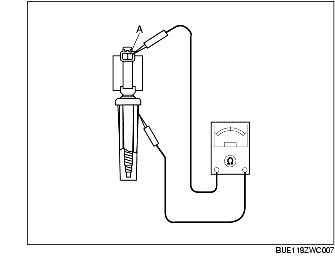

3. Measure the resistance between the following using an ohmmeter:

• Terminal A to coil boot socket

- If not within the specification, replace the ignition coil.

Resistance (Reference)

5.0-6.0 kilohms [25 °C {77 °F}]

Insulation Resistance of Case

1. Disconnect the ignition coil connector.

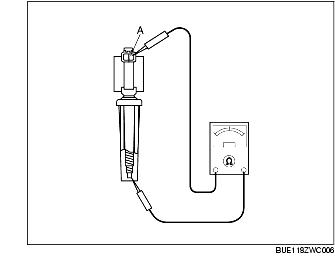

2. Measure the insulation resistance from terminal A to ignition coil case using an ohmmeter.

• If it is less than the specification, replace the ignition coil.

Resistance (Reference)

10 megohms [25 °C {77 °F}]
