IGNITION COIL BRACKET REMOVAL/INSTALLATION [YF (2.0L Zetec)]

1. Remove the ignition coil. (See IGNITION COIL REMOVAL/INSTALLATION [YF (2.0L Zetec)].)

2. Remove the bracket.

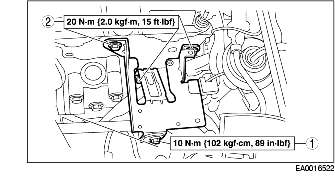

(1) Remove the exhaust gas recirculation (EGR) tube bracket bolt.

(2) Remove the three bolts and remove the ignition coil bracket.

3. To install, reverse the removal procedure.
