STARTER REMOVAL/INSTALLATION [L3 R.H.D.]

Warning

• When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before removing the starter.

1. Disconnect the negative battery cable.

2. Position the splash shield out of the way.

3. Position the heater hose out of the way with the hose and pipe still connected.

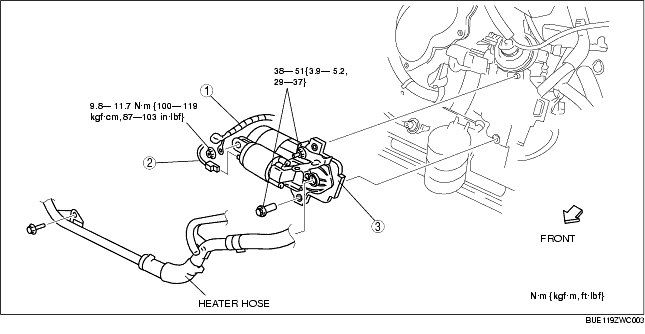

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

Starter Installation Note

Note

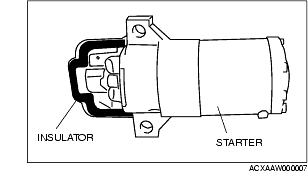

• If there is peeling on or damage to the insulator, attach a new insulator using the following procedure:

1. Peel off the insulator from the starter completely using a scraper.

2. Degrease the insulator attachment area.

3. Attach a new insulator to the starter.
