STARTER REMOVAL/INSTALLATION [L3 L.H.D.]

id0119008002c7

Warning
• When the battery cables are connected, touching the vehicle body with starter terminal B generates sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery before performing the following operation.

1. Disconnect the negative battery cable.

2. Position the splash shield out of the way.

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

1
Terminal B and S code
2
Bracket
3
Starter

Starter Installation Note

Note

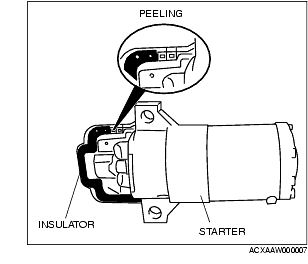

• If there is peeling on or damage to the insulator, attach a new insulator using the following procedure:

1. Peel off the insulator from the starter completely using a scraper.

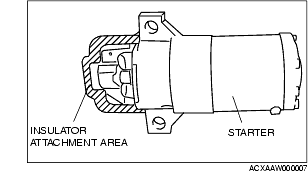

2. Degrease the insulator attachment area.

3. Attach a new insulator to the starter.
