STARTER INSPECTION [L3]
id0119008003a2
On-vehicle Inspection
1. Verify that the battery is fully charged.
2. The starter is normal if it rotates smoothly and without any noise when the engine is cranked.
-
• If the starter does not operate, inspect the following:
-
- Remove the starter, and inspect the starter unit.
-
- Inspect the related wiring harnesses, the ignition switch, and the transaxle range switch. (See IGNITION SWITCH INSPECTION.)(See TRANSAXLE RANGE (TR) SWITCH INSPECTION [GF4AX-EL].)
No-load test
1. Verify that battery is fully charged.

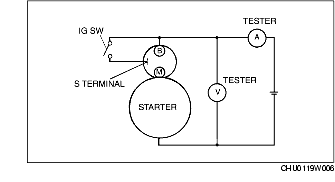

2. Connect the starter, battery, and a tester as shown in the figure.
3. Operate the starter and verify that it rotates smoothly.
4. Measure the voltage and current while the starter is operating.
-
• If the starter does not rotate smoothly or not within the specification, inspect the starter.
Standard
|
Item
|
Specification
|
|
Voltage (V)
|
11
|
|
Current (A)
|
90 or less
|
