TRANSAXLE RANGE (TR) SWITCH INSPECTION [GF4AX-EL]

id0517a4800900

Operation Inspection

1. Verify that the starter operates only with the ignition switch is turned to the START position with the selector lever in P or N position.

• If there is any malfunction, adjust the TR switch.

2. Verify that the back-up lights illuminate when shifted to R position with the ignition switch at the ON position.

• If there is any malfunction, adjust the TR switch.

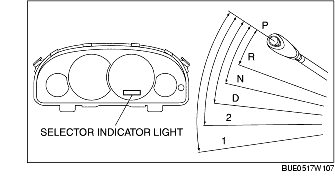

3. Verify that the positions of the selector lever and the indicator are aligned.

• If there is any malfunction, adjust the TR switch.

Continuity Inspection

1. Disconnect the negative battery cable.

2. Remove the battery and battery tray.

3. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3].)

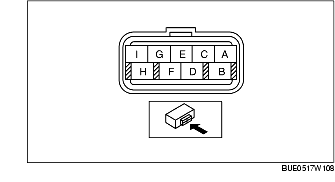

4. Disconnect the TR switch connector.

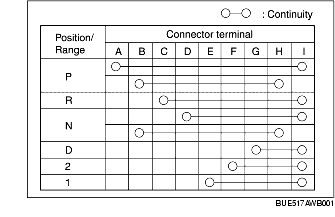

5. Verify that the continuity is as indicated in the table.

• If there is any malfunction, adjust the TR switch.

6. Reinspect for continuity at TR switch.

• If there is any malfunction, replace the TR switch. (See TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION [GF4AX-EL].)

7. Connect the TR switch connector.

8. Connect the negative battery cable.
