CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [YF (2.0L Zetec)]

1. Remove the exhaust manifold. (See EXHAUST MANIFOLD REMOVAL/INSTALLATION [YF (2.0L Zetec)].)

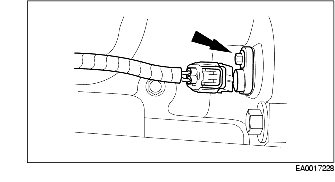

2. Disconnect the CKP sensor connector.

3. Remove the CKP sensor installation bolt.

4. Remove the CKP sensor.

5. Install in the reverse order of removal.

CKP sensor installation bolt tightening torque

7 N·m {71 kgf·cm, 61 in·lbf}
