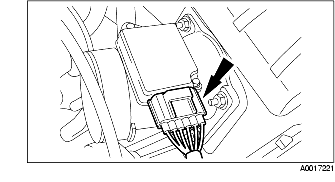

MASS AIR FLOW (MAF) SENSOR REMOVAL/INSTALLATION [YF (2.0L Zetec)]


id0140d4804200

1. Remove the air hose. (See AIR HOSE REMOVAL/INSTALLATION [YF (2.0L Zetec)].)

2. Disconnect MAF sensor connector.

3. Remove the MAF sensor installation bolts.

4. Remove the MAF sensor.

5. Install in the reverse order of removal.
