CYLINDER HEAD TEMPERATURE SENSOR REMOVAL/INSTALLATION [YF (2.0L Zetec)]

Warning

• A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the cylinder head temperature sensor.

1. Remove the Generator. (See GENERATOR REMOVAL/INSTALLATION [YF (2.0L Zetec)].)

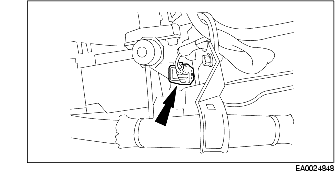

2. Disconnect the cylinder head temperature sensor connector.

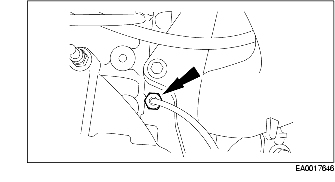

3. Remove the cylinder head temperature sensor.

4. Install in the reverse order of removal.

Cylinder head temperature sensor installation bolt tightening torque

10 N·m {102 kgf·cm, 89 in·lbf}
