FRONT LOWER ARM REMOVAL/INSTALLATION

id021300800600

Removal

1. Remove the wheels and tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

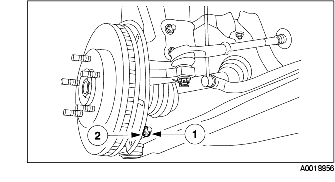

2. Disconnect the lower arm ball joint from the steering knuckle.

(1) Remove the bolt.
(2) Disconnect the lower arm ball joint from the steering knuckle.

3. Support the front crossmember.

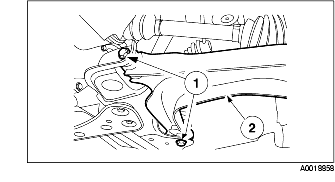

4. Remove the front lower arm.

(1) Remove the front lower arm bolts.
(2) Remove the front lower arm.

Installation

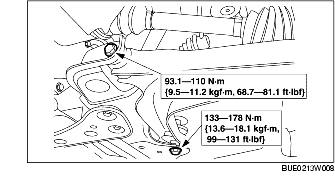

1. Temporarily tighten the front lower arm bolts.

2. Install the bolt to the steering knuckle.

3. Remove the front crossmember support.

4. Install the wheels and tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

5. Rock the vehicle slightly.

6. Tighten the front lower arm bolts.
