DUST BOOT (FRONT LOWER ARM BALL JOINT) REMOVAL/INSTALLATION


id021300801600

1. Remove the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION.)

2. Remove the dust boot and clean out the old grease from the ball joint.

3. Fill the inside of the new dust boot with grease.

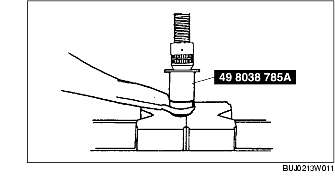

4. Press the dust boot into the lower arm using the SSTs and a press.

5. Wipe away any excess grease.

6. Install the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION.)
