FRONT LOWER ARM BUSHING REMOVAL/INSTALLATION

id021300801700

Removal

1. Remove the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION.)

2. Cut off the edge of the bushing.

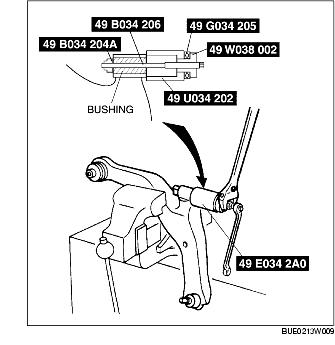

3. Install the SSTs as shown in the figure and remove the bushing.

Installation

1. Apply soapy water to the new bushing.

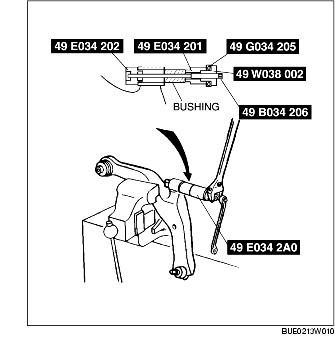

2. Install the SSTs as shown in the figure and install the bushing.

3. Install the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION.)
