RUBBER BUSHING (WHEEL KNUCKLE) REMOVAL/INSTALLATION

Removal/Installation

1. Remove the wheel knuckle. (See REAR AXLE REMOVAL/INSTALLATION.)

2. Remove the stop rubber.

3. Remove the rubber bushing from the wheel knuckle using the SSTs.

4. Install a new rubber bushing to the wheel knuckle using the SSTs.

Caution

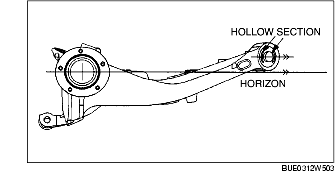

• Install the rubber bushing so that the hollow sections are positioned horizontally.

5. Install the stop rubber.

Caution

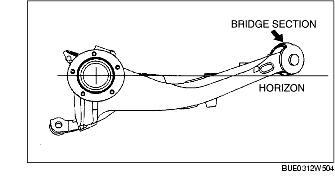

• Install the stop rubber so that the bridge section is positioned directly above.

6. Install the wheel knuckle to the vehicle.
