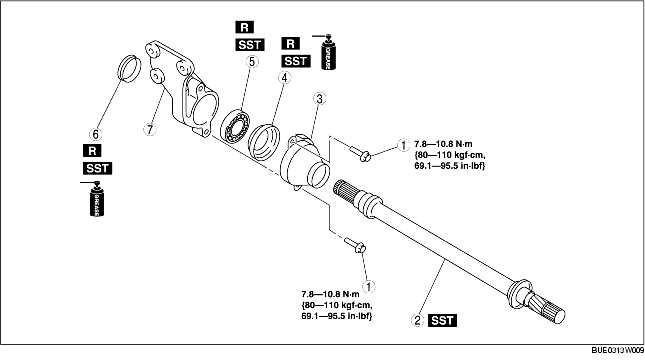

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
|
1
|
Bolt
|
|
2
|
Joint shaft
(See Joint Shaft Disassembly Note.)
(See Joint Shaft Assembly Note.)
|
|
3
|
Dust cover
|
|
4
|
Dust seal (differential side)
|
|
5
|
Bearing
(See Bearing Assembly Note.)
|
|
6
|
Dust seal (drive shaft side)
|
|
7
|
Bracket
|
1. Loosen the dust cover installation bolt and remove the dust cover from the bracket.

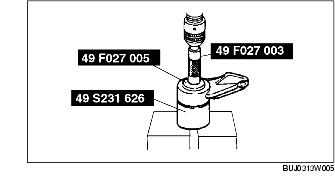

2. Remove the joint shaft using a press.

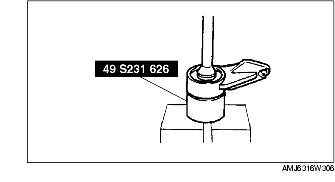

1. Remove the dust seal (differential side) and the bearing using the SSTs and a press.

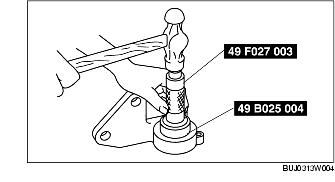

1. Apply grease to a new dust seal lip, and press fit the seal using the SSTs.

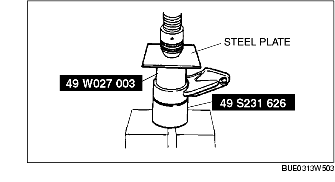

1. Press fit a new bearing using the SSTs.

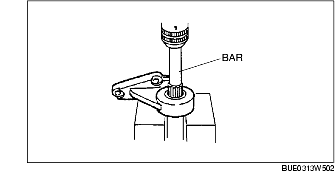

1. Apply grease to a new dust seal lip, and press fit the seal using the SSTs.

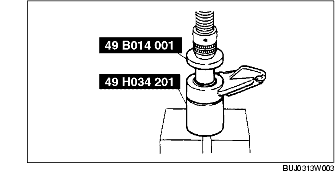

1. Press fit the joint shaft using the SSTs.
